Profile Specifications
| Trapezoidal Profile Specifications | |
|---|---|
| Raw Materials | PPGL & PPGI |
| Total Coated Thickness (mm) | 0.30 – 0.50 |
| Sheet Length | As per requirement |
| Effective Cover Width (mm) | 997.5 & 1200 |
| Overall cover width (mm) | 1058 & 1265 |
| Minimum Roof Slope | 3 degrees |

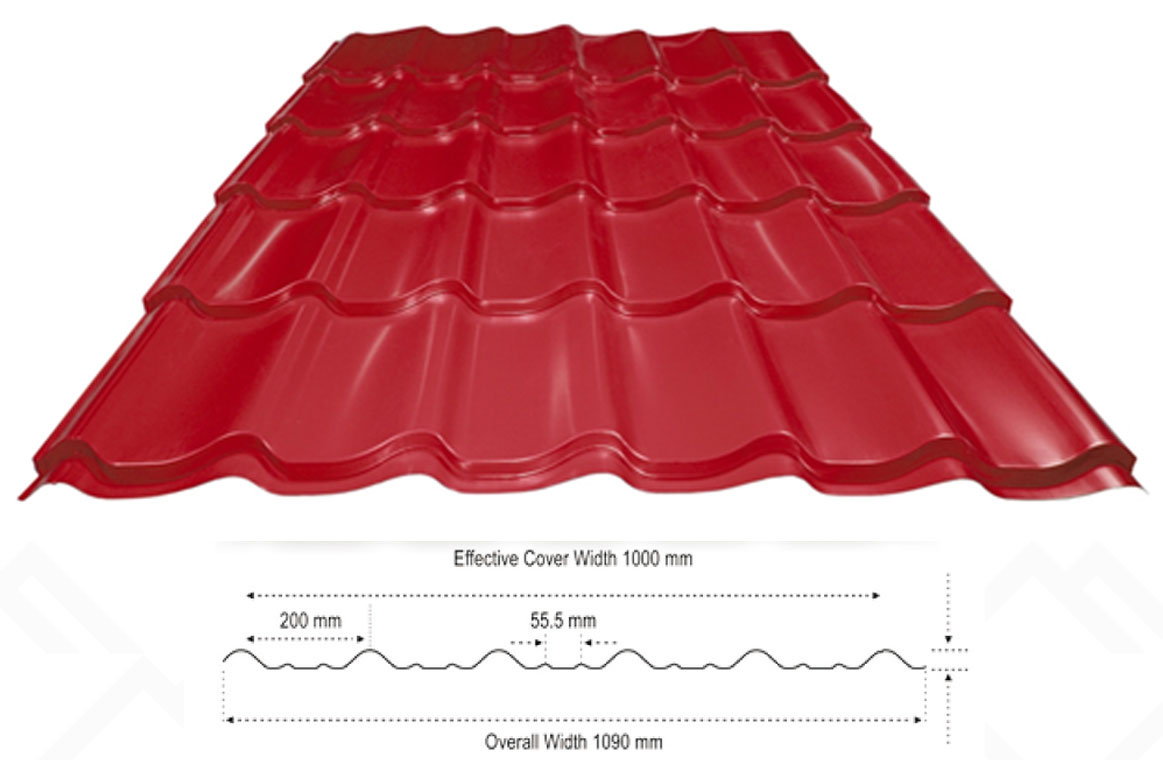

| Tile Profile Specification | |
|---|---|
| Raw Materials | PPGL & PPGI |
| Total Coated Thickness (mm) | 0.45 & 0.50 |
| Sheet Length | As per requirement |
| Effective Cover Width (mm) | 1000 |
| Overall cover width (mm) | 1090 |
| Minimum Roof Slope | 10 degrees |
ACCESSORIES
Ridge Flashing Eave flashing Corner flashing Gutters Gshan Infrabuild offers a wide range of accessories designed to perfectly finish the roofing & cladding sheets and ensure that all corners and joints are sealed. The colour of your sheeting can be either matched or complemented seamlessly, for a better aesthetic appearance of your building. We offer a full range of accessories right from flashing, ridges to downpipes. These accessories are manufactured from the same raw material & with the same treatment as the sheeting, thus ensuring a consistent appearance & long lasting performance. The accessories are available in the entire colour range as well as bare option.
Ridge flashing
Eave flashing
Corner Flashing
Gutters
Ridge flashing
Down Pipes
High quality Insulation
High strength Class 2 & 3 fasteners
